**WARNING** The repair plan in this article is specific to a 2018 MODEL S and to be used as an example guide for diagnostics. Always refer to the Circuit Diagram as it pertains to the VIN you are working, as connector references and fuse locations may differ **Part Numbers are subject to change** always refer to EPC for latest part numbers and applications

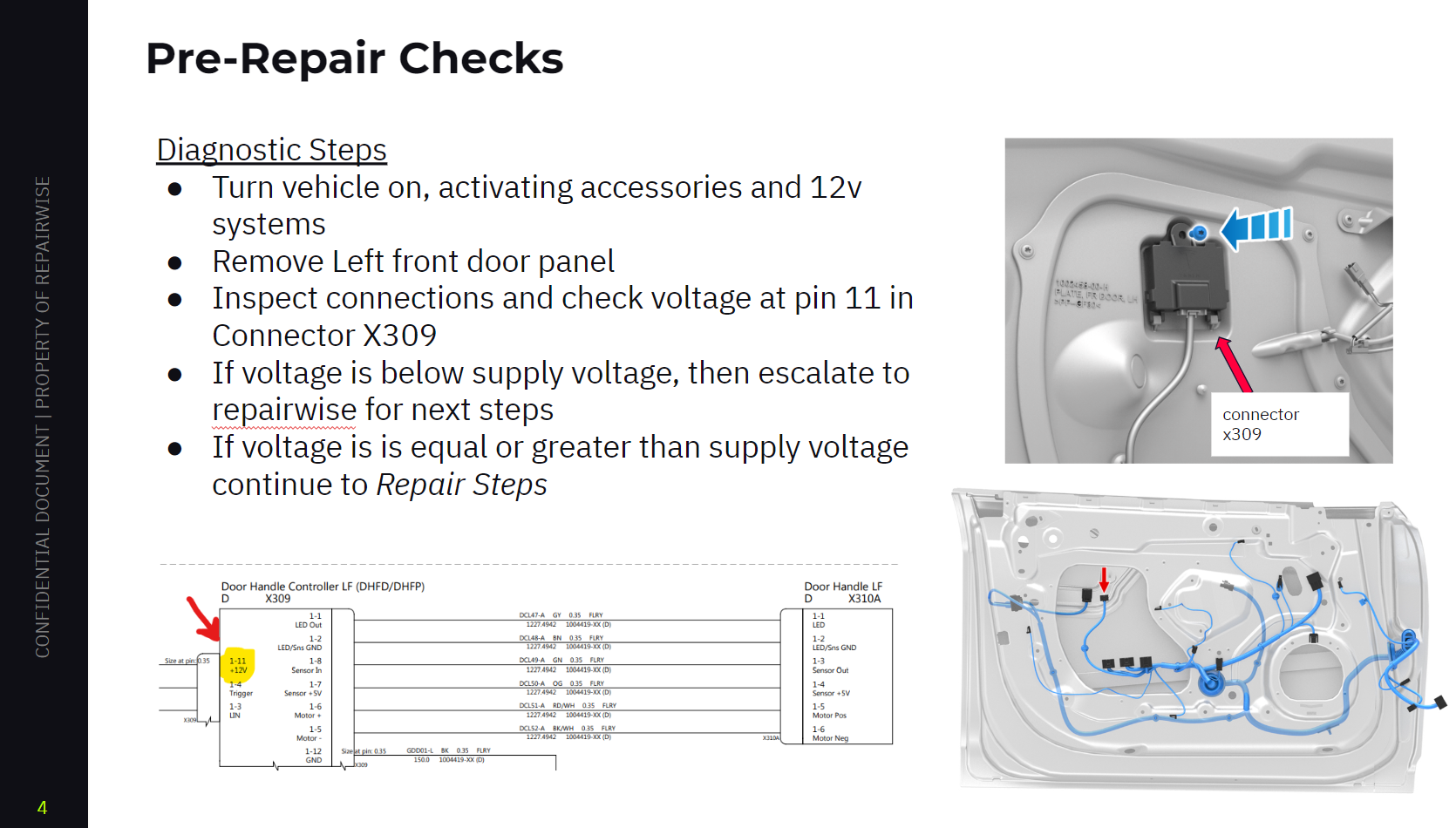

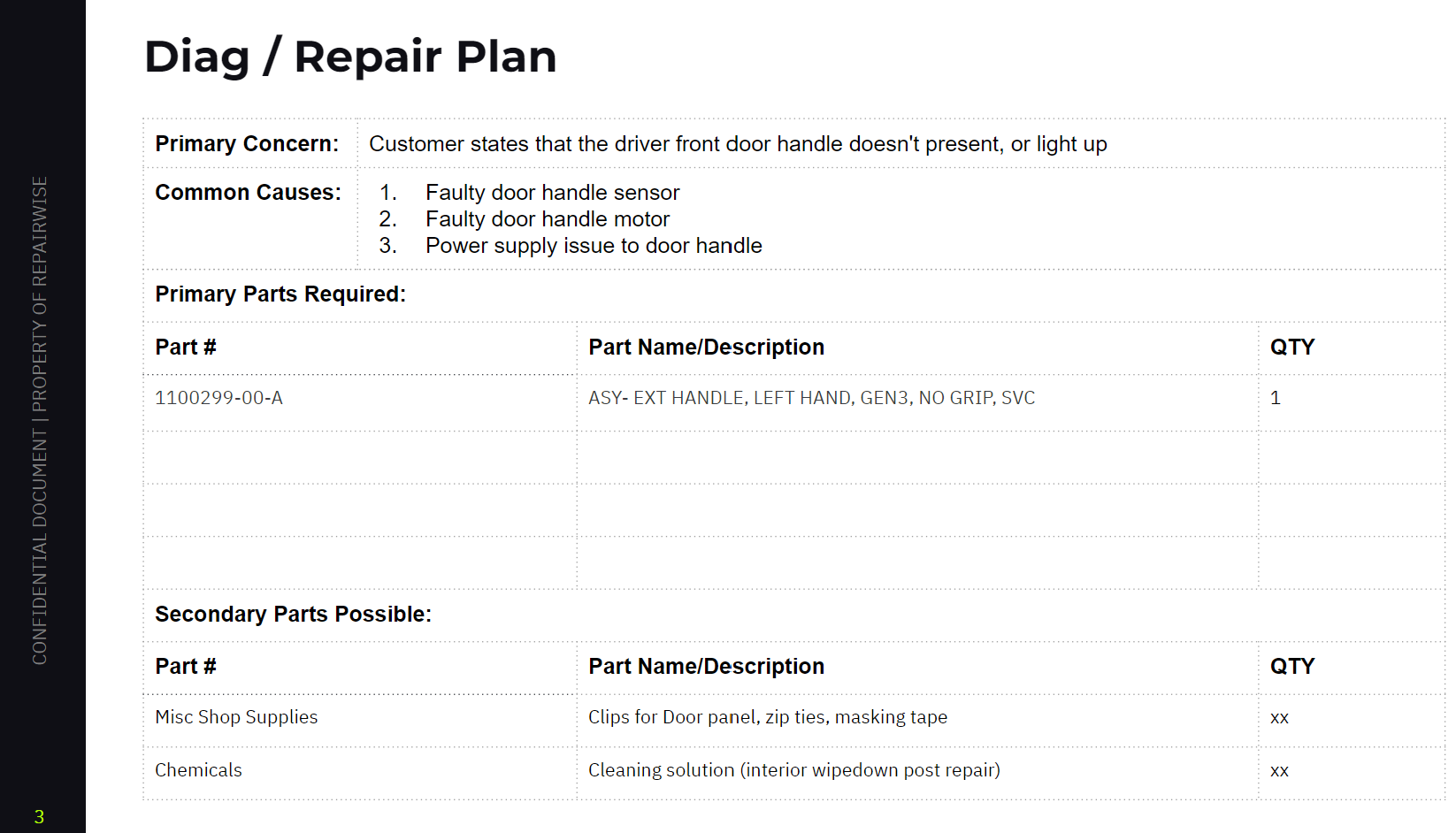

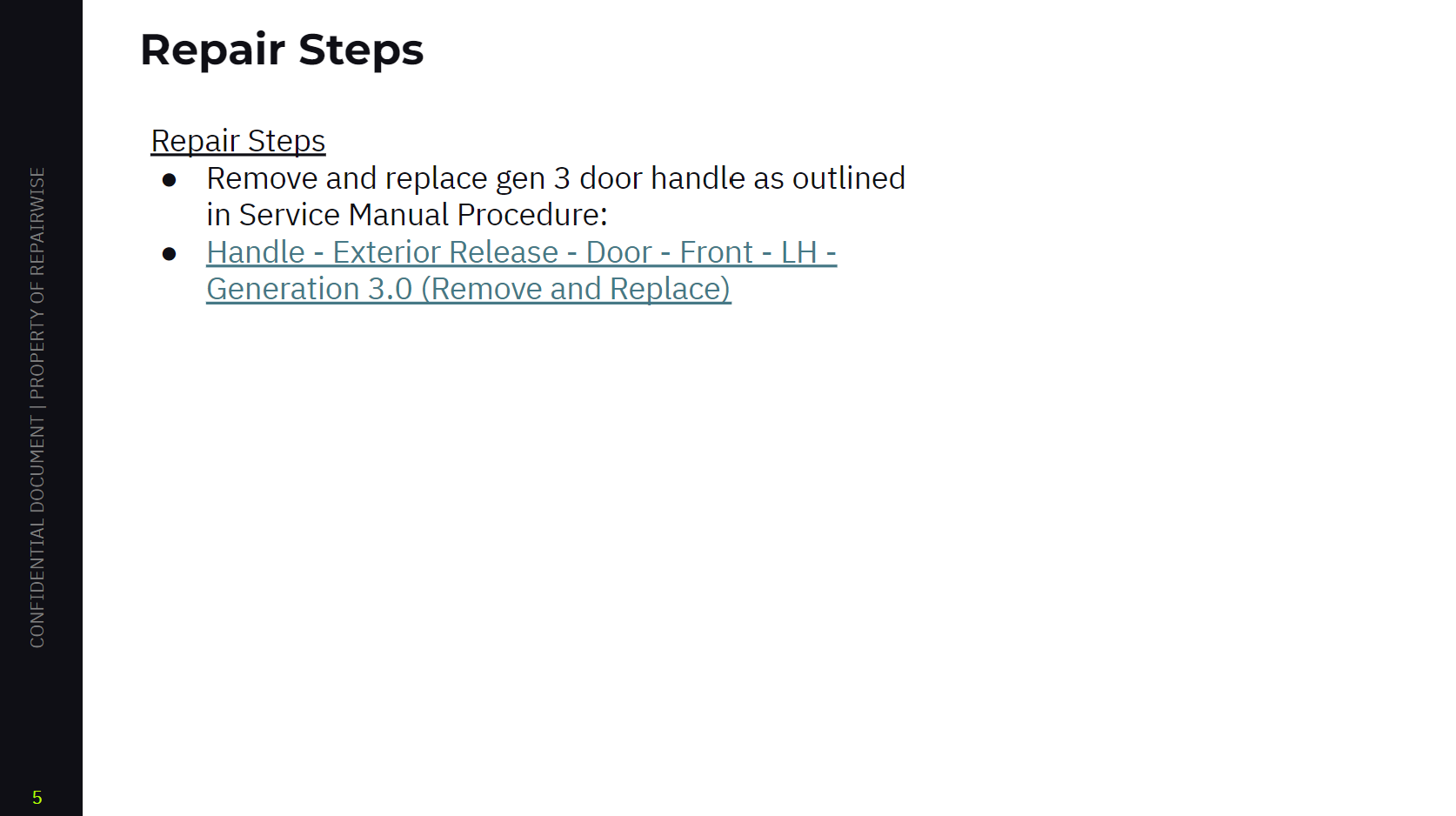

See attachment below
